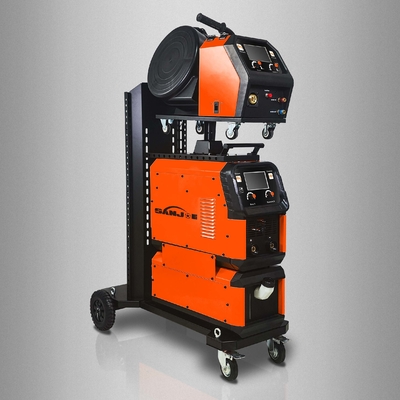

MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine

30PCS
MOQ
Negotiable
Price
MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine
Features Gallery Product Description Request A Quote
Features
Specifications
IUPUT VOLTAGE: AC380±15%
EMPERAGE: 500A
LCD: FULL COLORED
FEEDER: SEPARATED 4-ROLL
WIRE SPOOL: 15KG
FUNCTION: MIG/LIFT-TIG/MMA
COOLING: SEPARATED WATER COOLING UNIT
SCREEN: 5inch+5inch
SYSTEM: MULTILLINGUE
TROLLEY: UNIVERSAL
Basic Infomation
Place of Origin: China
Brand Name: Sanjoe
Certification: CCC,CE,RoHS
Model Number: MIG-500LS
Payment & Shipping Terms
Packaging Details: BEE COMB CARTON 745X435X920mm, 90PCS/21GP
Delivery Time: 30-50 DAYS
Supply Ability: 1000PCS PER MONTH
Product Description

MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine

Powerful amperage output and good welding performance!

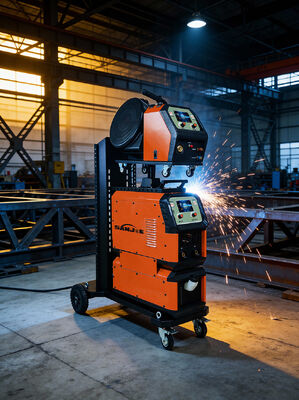

It's especially suitable for construction sites, shipyards and metal processing plants.

Features:

  • MIG-500LS is a new-generation innovative item, which is designed for easy welding.
  • Inbuild Synergy mode and MIG setting mode, no matter what your welding skill, you can weld perfect effects.
  • 2 x 5 inch LCD screen with an easy-use alternative interface
  • 4 rolls driven separated wire feeder, 15kg coil
  • Over 10 language versions for your choice, from this your business can extend to many other countries.
  • 2-knobs controlling method, it's more easier for use.
  • Multi-process including MIG/LIFT TIG/MMA functions
  • It can weld many different kinds of materials, mild steel, stainless steel, aluminum, copper and etc.
  • Pulse welding, spot welding
TECHNICAL PARAMETERS UNIT MIG-500LS
Rated input voltage V AC380V±15% 50/60
Rated input power KVA 24.7
Output current range
A
MIG:40-500
MMA:30-500
TIG:40-500
Duty cycle % 40
Wire feeder

Separated
Wire feeding speed m/min 2-24
Welding plate thickness Mm 0.5-20
Feeding wire diameter   1.0/1.2/1.6
Machine dimensions Mm 810 x 510 x 800
Net weight Kg 46





MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine 0



MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine 1MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine 2

MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine 3MIG500LS 2 Display Gmaw Welding Machine with Separated wire feeder and Separated water cooler MIG welding machine 4

Q&A

Q: How To Order?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed OEM details

Step 4, finally we deliver the goods within the stipulated time.

Q: What is the MOQ?
A: Depends on models. From 20-500 pieces. Accept sample.
Also can mix models in 1 container.
Q: When you ship my order
R: Normally container need 30-50 days, sample 5-7 days

Q: How about the quality guarantee period?
R: One year.

Q: Do you have the certificates?
R: Yes, we have passed the CE, EMC, RoHS and CCC certifications. Other certifications can be prepared.

Q: Do you offer ODM & OEM service.
R: Yes, we can custom design for specific applications.

Q: When can I get the quotation?
R: We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q: How can I get a sample to check your quality?
R: After the price is confirmed, you can require samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when the quantity of your first order is above the MOQ.

Q: What is your main market?
R: Europe, South America, East Asia, Russia, Australia, etc..
