IGBT 100A Cutting Machine Plasma 15.2KVA Power 27.5kg Weight
50PCS
MOQ
Negotiable
Price
IGBT 100A Cutting Machine Plasma 15.2KVA Power 27.5kg Weight
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Sanjoe
Certification: CCC,CE,RoHS
Model Number: CUT100K
High Light:

100A Cutting Machine Plasma

,

IGBT Cutting Machine Plasma

,

15.2KVA Cutting Machine Plasma

Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 30-50 DAYS
Supply Ability: 3000PCS PER MONTH
Specifications
Input Voltage: AC380±15%
Rated Input Power: 15.2KVA
Output Current Range: CUT: 25-100A
Duty Cycle: 60%
Quality Cutting Thickness: 30mm
Max. Thickness: 40mm
Air Pressure: 5KGF/CM²
Initial Arc: High Frequency Non Touch
Machine Dimension: 550x280x550mm
Net Weight: 27.5kg
Product Description

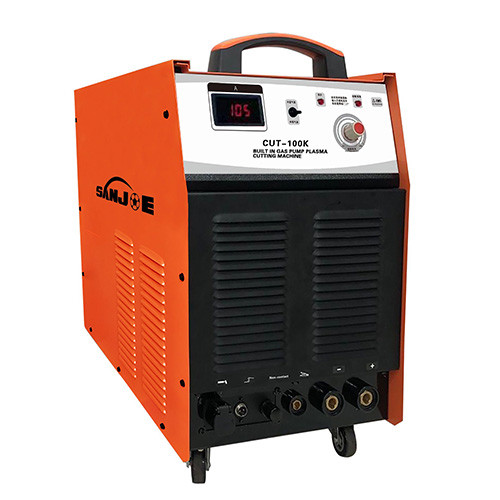

IGBT 100A Built-In Air Compressor Plasma Cutting Machine CUT100K

Features:



  • Single-tube inverter technology, faster response.
  • 3PCB structure design, stable and durable.
  • Over-current / over heat protection





TECHNICAL PARAMETERS UNIT CUT100K
Rated input voltage V AC380±15% 50/60
Rated input power KVA 15.2
Output current range A

CUT:25-100

Duty Cycle % 60
Arc Starting

High frequency

Air Pressure  KGF/cm²

5

Quality cutting thickness mm

30

Extreme cutting thickness mm

40

Machine dimensions mm

550x280x550

Net weight kg

27.5



IGBT 100A Cutting Machine Plasma 15.2KVA Power 27.5kg Weight 0IGBT 100A Cutting Machine Plasma 15.2KVA Power 27.5kg Weight 1





Q&A

Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed OEM details

Step 4, finally we deliver the goods within the stipulated time.

Q: What is the MOQ?
A: Depends on models. From 20-500 pieces. Accept sample.
Also can mix models in 1 container.
Q: When you ship my order
R: Normally container need 30-50 days, sample 5-7 days

Q: How about the quality guarantee period?
R: One year.

Q: Do you have the certificates?
R: Yes, we have passed the CE, EMC, RoHS and CCC certification. Other certifications can be prepared.

Q: Do you offer ODM & OEM service.
R: Yes, we can custom design for specific application.

Q: When can I get the quotation?
R:We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q: How can I get a sample to check your quality?
R:After price confirmed, you can require for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ.

Q: What is your main market?
R: Europe, South America, East Asia, Russia, Australia etc..
